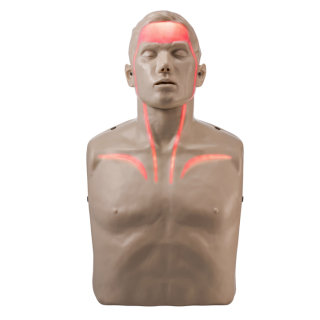

Brayden CPR Manikin

The award-winning Brayden CPR Manikin is an innovative and effective way to teach CPR. It’s the only unique led lights-based CPR feedback that enables students to learn the “how-to” and “why to” in an intuitive and easy to understand manner. It is the first cost-effective manikin to provide real-time feedback of CPR performance with the additional capability of allowing users to visualise how CPR affects coronary and cerebral blood flows. This novel and innovative feature allow the Brayden manikin to occupy a unique position and feedback capability amongst other manikins currently available.

Key Benefits

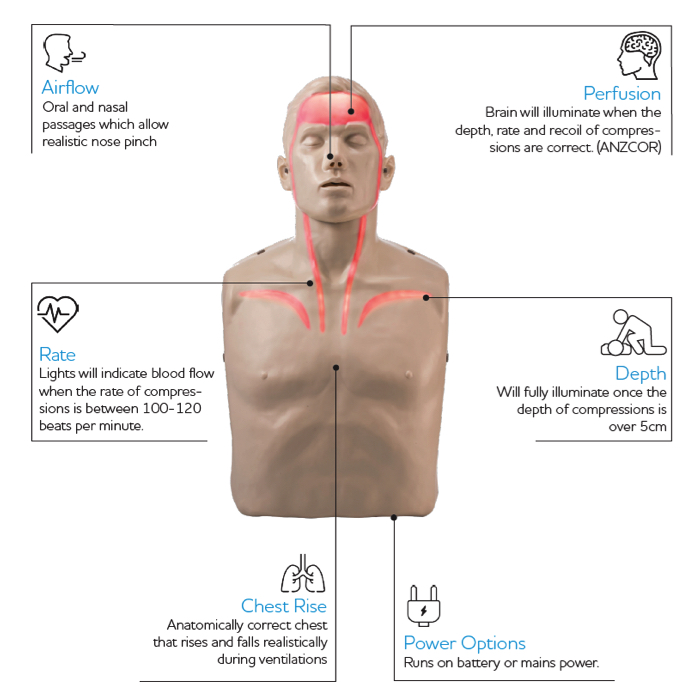

1. BLOOD CIRCULATION INDICATING LAMPS

Let you visualize the blood flow feedback from the heart to the brain during the CPR, as one can easily observe the changing speed of the blood flow feedback directly proportionate to the depth and speed of the compression. These will only fully light when the depth of compressions is over 5 cm.

2. COMPRESSION INDICATING LAMPS

This feedback illuminates to represent the flow of the blood from the heart to the brain. The speed of the blood flow shown varies according to the depth and speed of the compressions. These will only fully light once the rate of compressions is over 100 per minute.

3. CPR QUALITY INDICATING LIGHT

This feedback illuminates to represent that blood is reaching the brain. This will only fully light when the depth and speed of compressions are correct.

Contents
ILLUMINATED MANIKIN PACKAGE (OPTION 1)

Single Brayden package containing four illuminating CPR manikin with standard accessories

  • 4 x Illuminating Manikin
  • 4 x Carrying Case & Training Mat
  • 40 x Face shields
  • 24 x Batteries
  • 4 x Spare Face Shield
  • 4 x Spare Artificial Lung
  • 1 x Large Carry Case for 4 Units
NON-ILLUMINATED MANIKIN PACKING (OPTION 2)

Single Brayden package containing four non-illuminating CPR manikin with standard accessories

  • 4 x Non-Illuminating Manikin
  • 4 x Carrying Case & Training Mat
  • 40 x Face shields
  • 4 x Spare Face Shield
  • 4 x Spare Artificial Lung
  • 1 Large Carry Case for 4 Units
ILLUMINATED MANIKIN PACKAGE (OPTION 3)

Single Brayden package containing one illuminating and three non-illuminating CPR manikin with standard accessories

  • 1 x Illuminating Manikin
  • 3 x Non-Illuminating Manikin
  • 4 x Carrying Case & Training Mat
  • 40 x Face shields
  • 6 x Batteries
  • 4 x Spare Face Shield
  • 4 x Spare Artificial Lung
  • 1 Large Carry Case for 4 Units
More information
Type: Torso
Display visual flow of blood from the heart to the brain: Yes
Chest compression depth and speed measuring sensor: Yes
Chest movement with ventilation: Yes

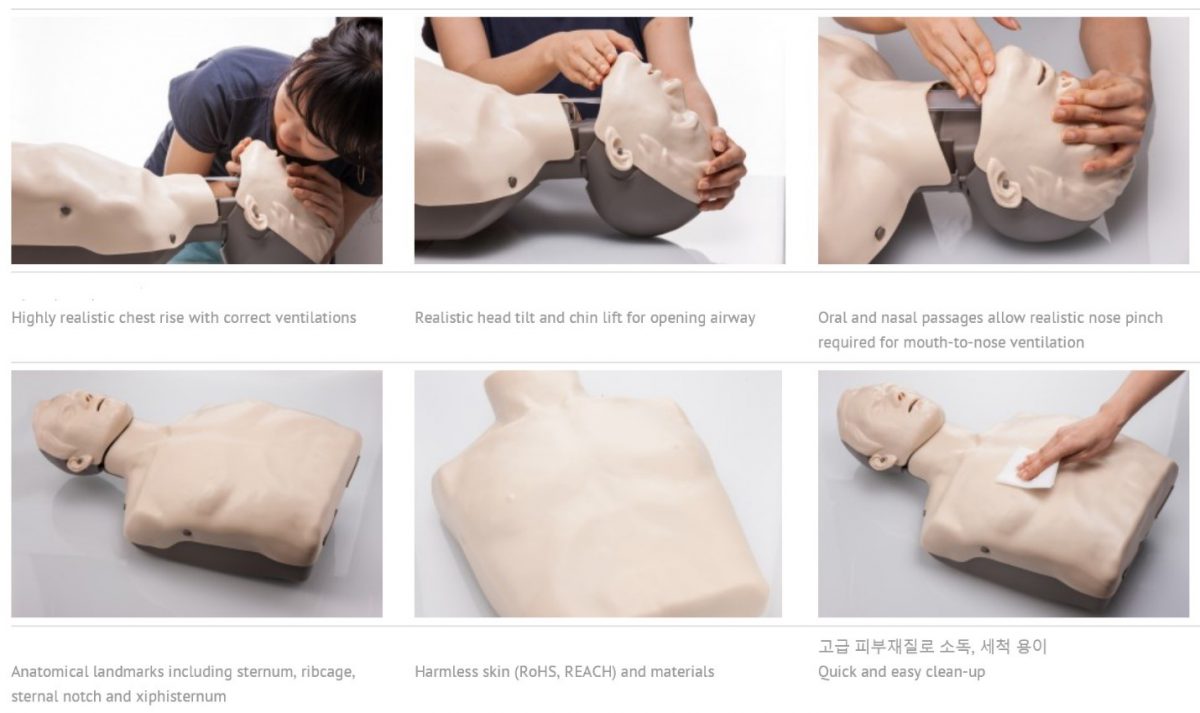

Head tilt and Chin lift for opening airway: Yes
Airways system: Non-breathing with disposable lungs
Ribs, Xiphoid: Yes

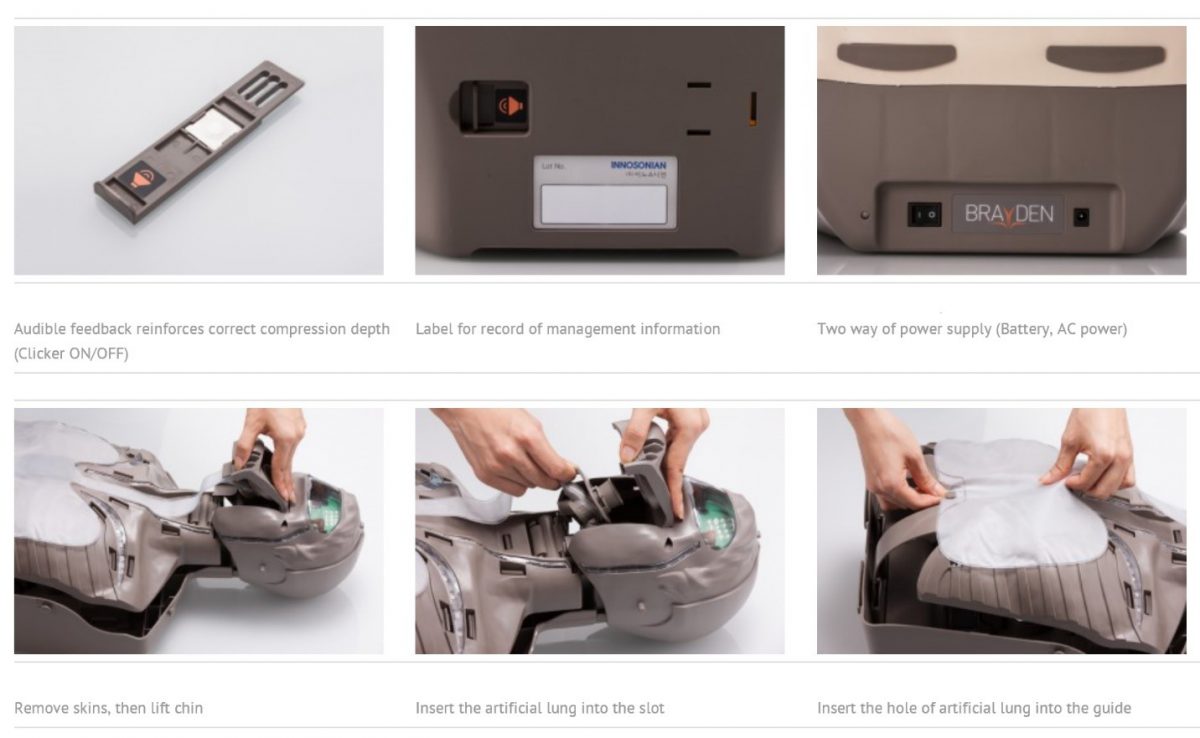

Clicker (Audible feedback): Yes
Length: 59cm
Weight: 3.1kg (6.8lb)(including batteries)
Packed weight: 5.3kg (G/W), 4.3kg (N/W)
Dimensions packed: 37cm x 26cm x 62cm
Operating temperature: 15*C to 30*C (59*F to 86*F)
Storage temperature: -10*C to 40*C (14*F to 122*F)
Humidity: Relative humidity between 5% and 95%
Warranty: 2 years (excluding consumables)
Power: AC Adapter (Input AC 100 ~ 260V, Output DC 9V 1A) Battery C type (6 batteries)
Additional Options
Brayden manikin is available without lights (25785)
Brayden Bunch multiple packages include: 4 x Brayden with Lights (25781)
4 x Brayden without Lights (25786)
1 x Brayden with Lights,
3 x Brayden without Lights (25787)

IM13-SA01 Face Skin
IM13-SA02 Body Skin
IM13-SA03 Head Unit
IM13-SA04 Chin
IM13-SA05 Body
IM13-SA06 Rib
IM13-SA07 Face Conn.
IM13-SA08 Airway Valve
IM13-SA09 Artificial Lung
IM13-SA10 Clicker
IM13-SA11 Clicker Actuator
IM13-SA12 Spring (40kg)
IM13-SA13 Mat Bag
IM13-SA14 User Manual
IM13-SA15 Face Shield
IM13-OA01 AC Adaptor

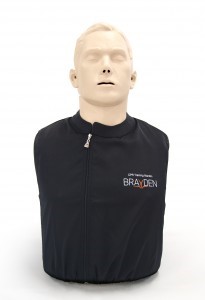

IM13-OA03 Jacket
